Specification:

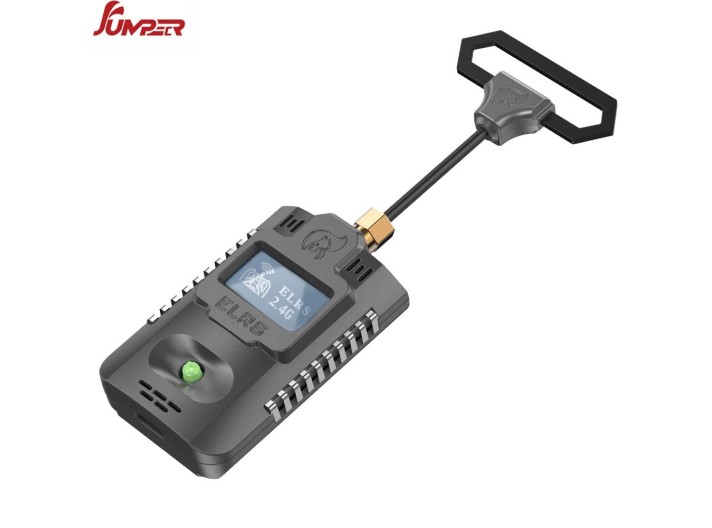

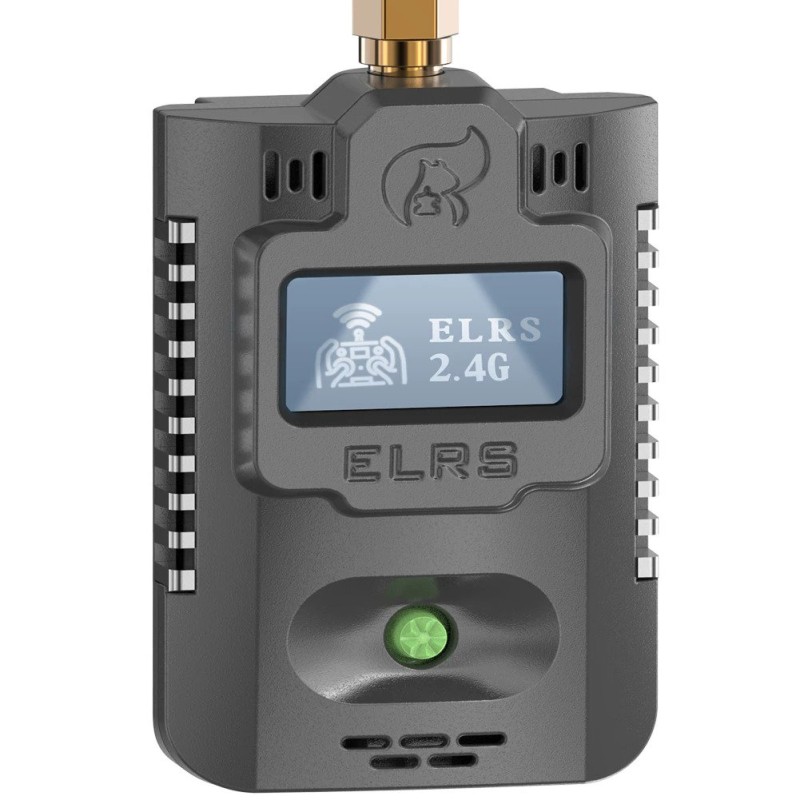

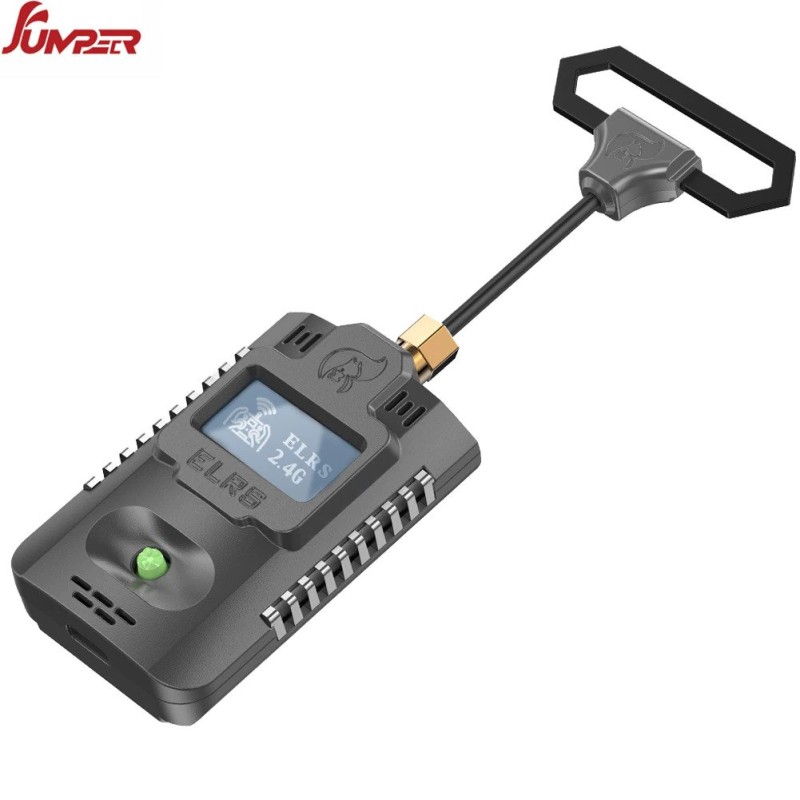

Item: Jumper 2.4G ELRS TX Module

Model Name: AION TX NANO

MCU:ESP32

RF output power: 10-500mW

Frequency Range: 2.4GHz-2.5GHz

Firmware: ExpressLRS

Antenna: Directional diamond antenna for better signal penetration

Working voltage: DC5-8.4v

Maximum refresh rate: 500Hz

Menu button: 5 direction buttons

Voltage: DC6-8.4V

Current: <400mA

Port: S. Port

Firmware Update: Via Wifi, UBC-C or Blue Tooth

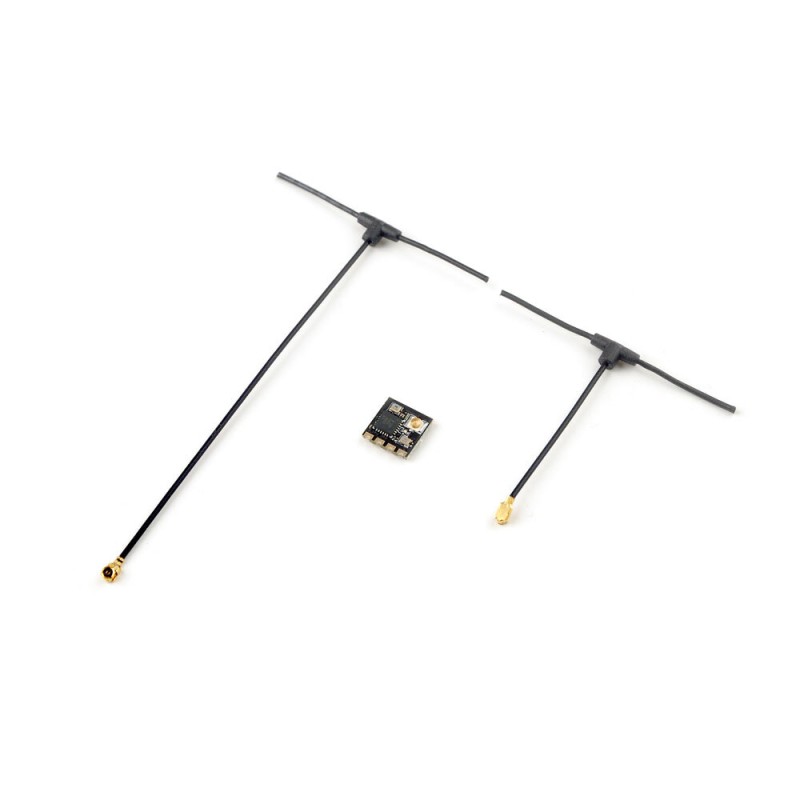

Specifications


DImension: 17.2*8.8*4.3mm (L x W x H)

Weight: 1.1g

Number of channels: 16 channels

Operating Voltage Range: 3.5V ~ 6V

Operating Current: 60mA @ 5V

Operating range: full range

Distance: >5 km

Compatibility: radios in ELRS 2.4 mode


The set includes:

Eleres

The antenna is 2 pieces long and short

Mini transmitter

Characteristics
screen OLED

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Jumper 2,4G ELRS TX Module AION NANO T-PRO / ExpressLRS AION-RX-MINI

  • Brand: Jumper
  • Product Code: Product JMEL
  • Availability: In Stock
  • ₾ 128
